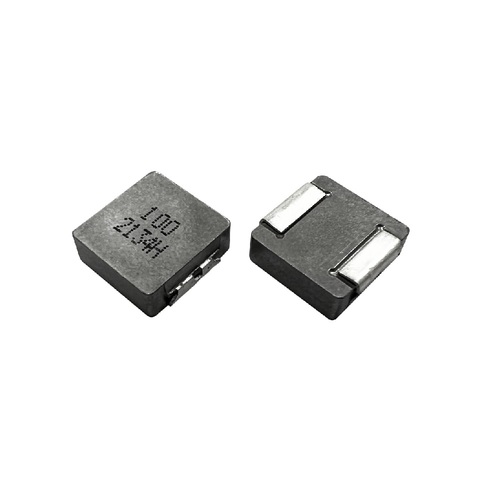

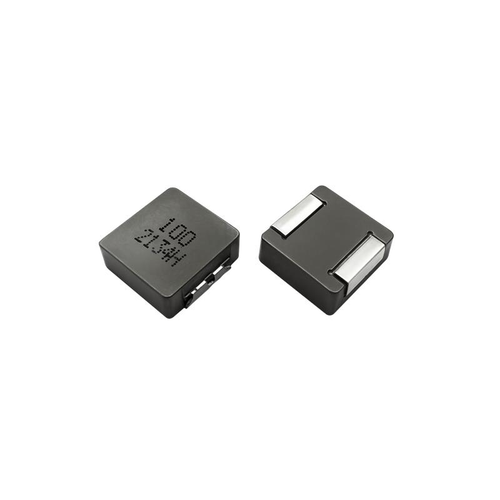

GSTH
大電流模壓電感 , 一體成型功率電感
代碼 power_gsth
人氣 658
| Description | • High performance (Isat) realized by metal dust core. • Low loss realized with low DCR • Capable of corresponing high frequency (1MHz) • 100% lead (Pb) free meet RoHS standard • DC / DC converter for CPU in Notebook PC |
| Size | 3.2 x 1.8 x 0.7 17.8 x 16.9 x 6.7 |
| Inductance | L : 0.1 ~ 47.0 uH |
| DCR | DCR : 0.36 ~ 422.0 mOhm |
| Isat | Isat : 1.2~115.0 A |
| IDC/Irms | Irms : 1.2~60.0A |
| Application | • Automotive Application • Security • SSD / HDD / NAS • Game Console • Note Book / Ultra Book |
