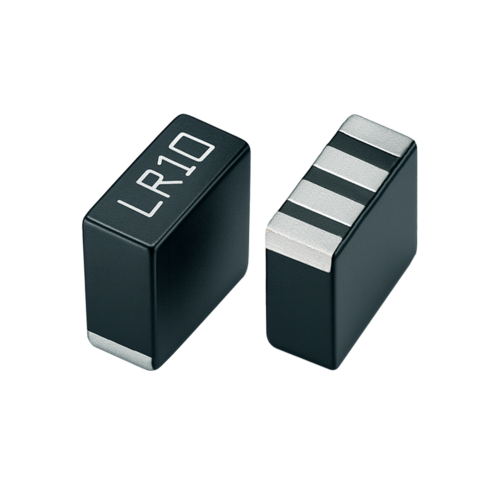

GTLVRM
耦合功率電感
耦合電感
耦合電感
代碼 POWER_GTLVRM
人氣 34
| Description | • PMIC multiphase voltage regulators. • New architecture Voltage Regulator Modules (TLVR) • DCR sensing circuits • 100% lead (Pb) free meet RoHS standard Z : N/A |
| Size | 7.8 x4.8x 5.8~ 11.0 x 6.7 x 4.7 |
| Inductance | L : 0.08~0.1 uH |
| DCR | DCR: 0.13 ~ 0.28 m Ohm |
| Isat | Isat: 90.0 ~ 100.0 A |
| IDC/Irms | Irms: 54.0 ~ 72.0 A |
| Application | • PC、Server、IPC、VRM and EVRD • Data networks and storage systems • Point-of-load modules (POL) • AI HPC (High-performance computing) • Graphics cards, Battery power systems and PMIC control |
