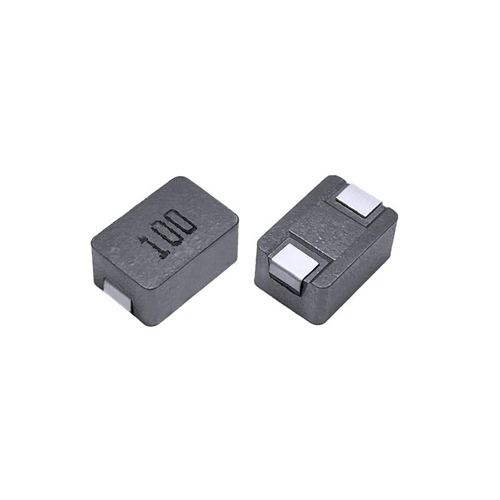

Description | • High performance (Isat) realized by metal dust core • Low loss realized with low DCR • Capable of corresponing high frequency • 100% lead (Pb) free meet RoHS standard |
Size | 8.7 x 8.1 x 5.0 ~ 18.5 x 17.3 x 7.0 |
Inductance | L: 0.15 ~ 100.0 uH |
DCR | DCR: 0.47 ~ 225.0 m Ohm |
Isat | Isat: 2.8 ~ 90.0 A |
IDC/Irms | Irms: 2.5 ~ 55.0 A |
Application | • Automotive Application • Security • SSD / HDD / NAS • Game Console • Note Book / Ultra Book • Sever |
